HEEWING

T1 Ranger VTOL - PNP

T1 Ranger VTOL - PNP

Regular price $299.00
Regular price $339.00 Sale price $299.00
Sale Sold out
Option

✈️ FREE Worldwide Premium Tracked Airmail Shipping (US UK EU CA UAE)

T1 Ranger VTOL - PNP comes *Pre-installed & Pre-configured F405 based VTOL Flight Controller!

If you want to experience the factory parameters, you just need to hook up your receiver, configure the receiver, perform radio calibration, match the flight modes to your radio and you are on your way to do your first VTOL take off, anywhere!

Features
1. Small, lightweight and portable at 730mm wingspan
2. Quick disassembly design. Assemble and disassemble for transportion in a minute
3. VTOL - Vertical Take Off and Landing
4. Superb aerodynamic design. Stable at low speed
5. Large internal space to carry battery and electronics with high flexibility to achieve the best CG
6. Front and rear hatch for maximum flexibility organising your electronics
7. Dedicated front FPV camera mount
8. White foam is now the same high dense version as Gray foam
9. New revised air intake for better cooling
10. Easily detachable main wings reduce damage during a crash

Specification
Brand : Hee Wing RC
Model : T1 Ranger VTOL - PNP
Material : EPP
Color : Gray only
Wingspan : 730mm
Length : 645mm
Height : 140mm
Weight : 451gram
Takeoff Weight : 600g to 750gram
Fuselage Size : 245m(L) x 51mm(W) x 48mm(H)
Minimum Speed : <20km/h
Maximum Speed : >120km/h
Maximum Range : 30 km
Maximum Cruise Time : 35min
Package Dimension : 400mm x 230mm x 155mmm

What's included
1x T1 Ranger VTOL - PNP
- Preinstalled 3x FX-1806 2000KV Motor, 3x FX-25A ESC, 3x 7g Digital Metal Gear Servo, 2x Metal Gear Tilt Servo, 3x 5126 propellers, Quick Release Wiring Plug for the Main Wings, and your choice of whether to have Flight controller included.

*Options
a. PNP without FX-405 Flight Controller - comes with 5V/3A UBEC ( White version T1)

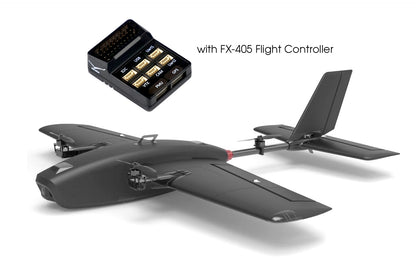

b. PNP with FX-405 Flight Controller - Preinstalled + Preconfigured VTOL FX-405 Flight Controller with 5V/5A PMU & 9V/3A UBEC
Kindly Note: PNP without FX-405 Flight Controller is pre-order now, delivery will start after we back from holiday(For estimate will be around Feb. 25th)

Requires your own/not included
Radio - Minimum 5 channels. Grab one 👉 here
Receiver - Minimum 5 channels. Grab one 👉 here
Battery : 4S 1300mAh - 5000mAh or 150-250gram *recommended 👉 here
Charger : supports up to 4S LiPo charging


Note

- VTOL parameters preloaded are for reference only. Fly at your own risk. We are not responsible for any issue arise from this such as crashing. You may adjust the parameters accordingly.

- each of your main wings, tail and fuselage are individually box within the external shipping box for maximum protection during shipping

- VTOL must be powered on 4S, not lower.

- to ensure a great first experience with your T1 VTOL PNP, check out the notes on the instruction page before flight


Featured photos & video

F405 based VTOL Flight Controller specially customized for Hee Wing RC with much smaller form factor. Pre-loaded with VTOL parameters.
