F01 - PNP( Without Pre-installed )

All products of HEE WING are foam model airplanes, which are only for entertainment, collection, and technical communication among model airplane enthusiasts. It is strictly prohibited to modify the products in any illegal or dangerous way, or to use them as components or substitutes for any lethal weapons or equipment. Users must ensure that their use complies completely with the laws and regulations of their local place. Any consequences and legal responsibilities arising from misuse, abuse or illegal use of this product shall be borne by the user himself. The manufacturer and seller shall not be responsible for any direct or indirect losses caused by violation of this statement.

CAUTION:  Please ensure all components are securely fastened and all direction are correct before flight! Please read the guide manual carefully before operating、adjusting and flight the model and follow all precautions, limitations and recommendations in the manual to do the installation.

In order for everyone to enjoy flying better, we sincerely recommend that all users carefully check their aircraft before taking off（Glue, nails, nuts, bolts, screws, foam ect.) Safety is your own responsibility. Please be sure to check carefully before takeoff.

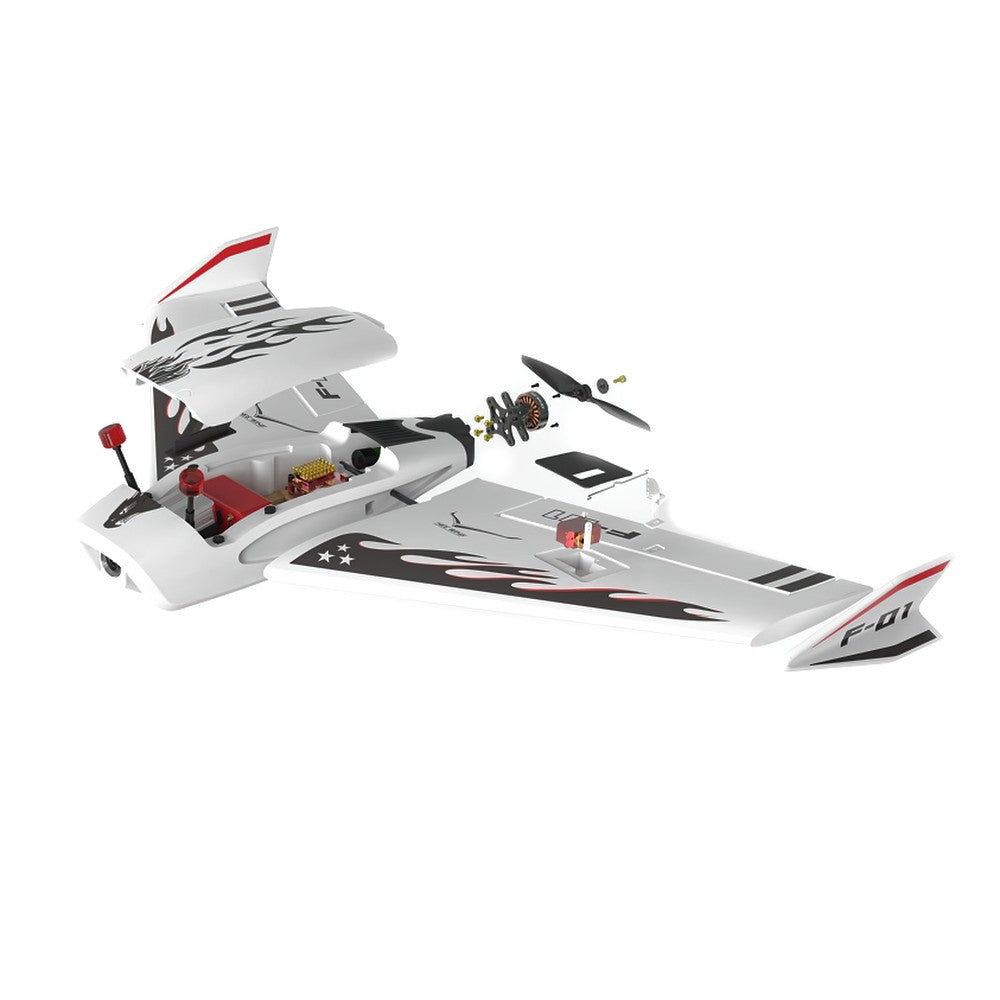

Introducing the new F01 - PNP(Bulk parts without assembly) with full PNP electrical components. Perfect for DIY enthusiasts who prefer a hands-on approach. Experience the convenience and satisfaction of building your own product.

F01 Installation guide:

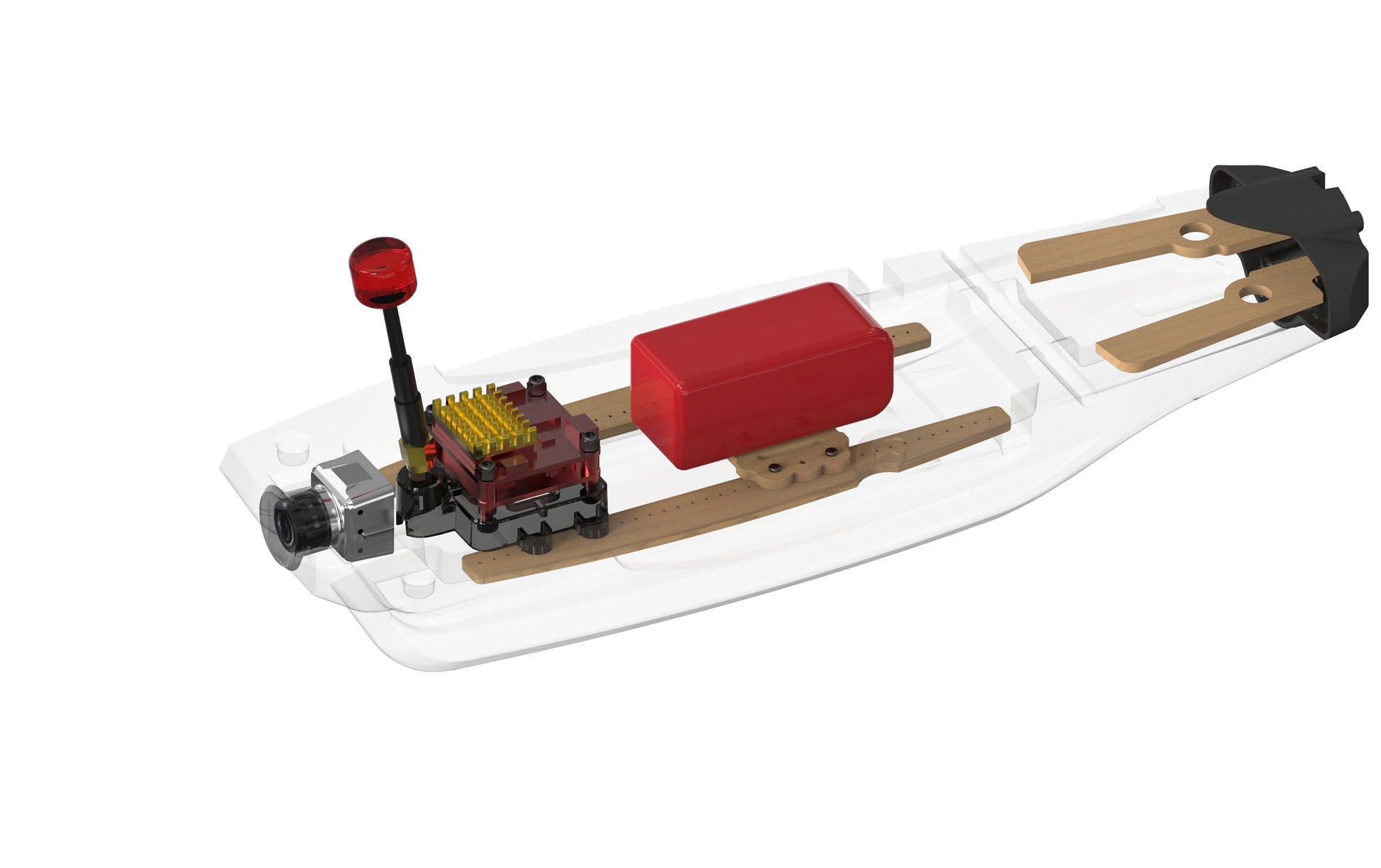

The F01 - PNP offers more flexibility to customize your device layout according to your needs. Enjoy greater freedom in arranging your electronics with this product.

Don't miss this special discount, exclusively for you!

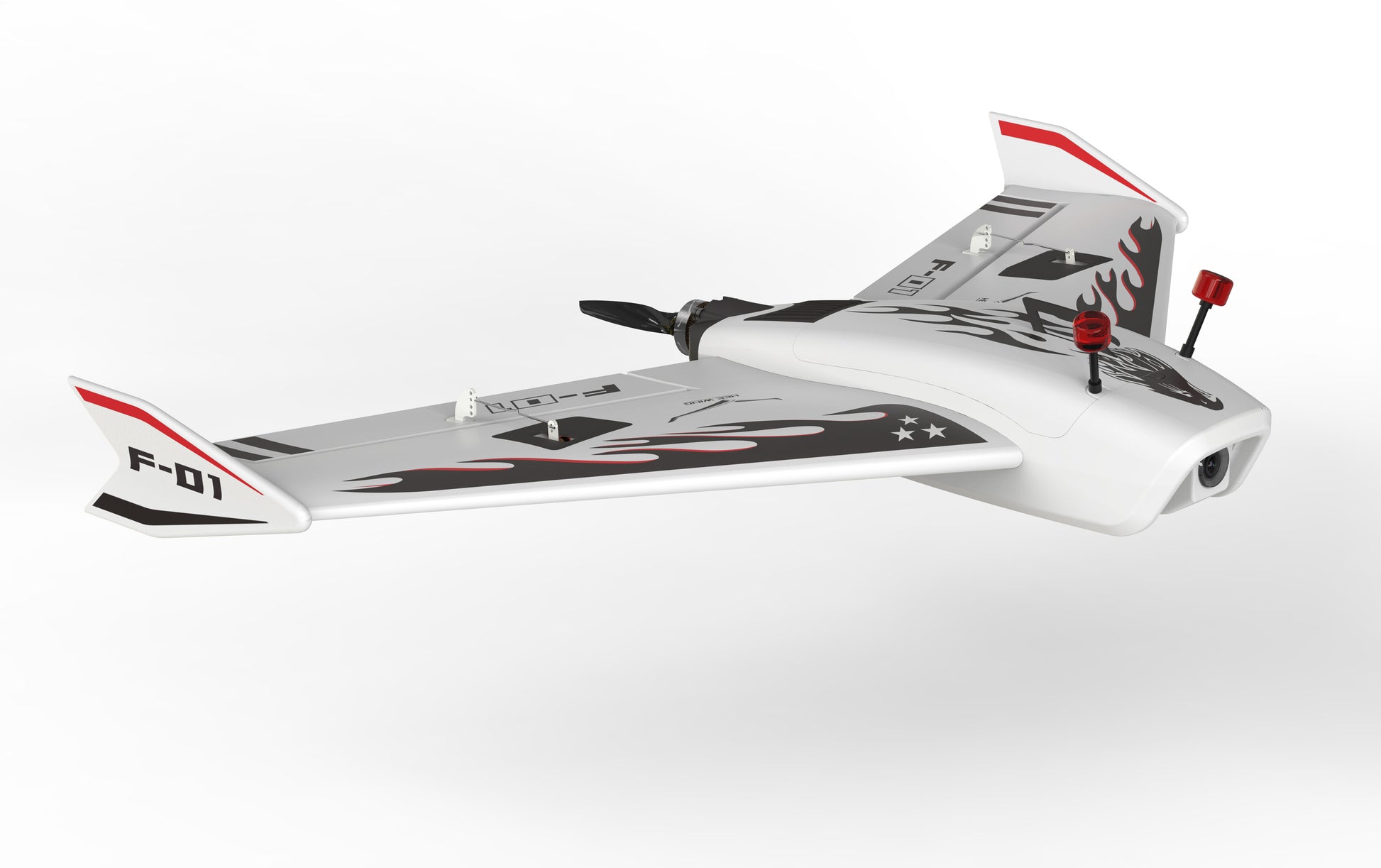

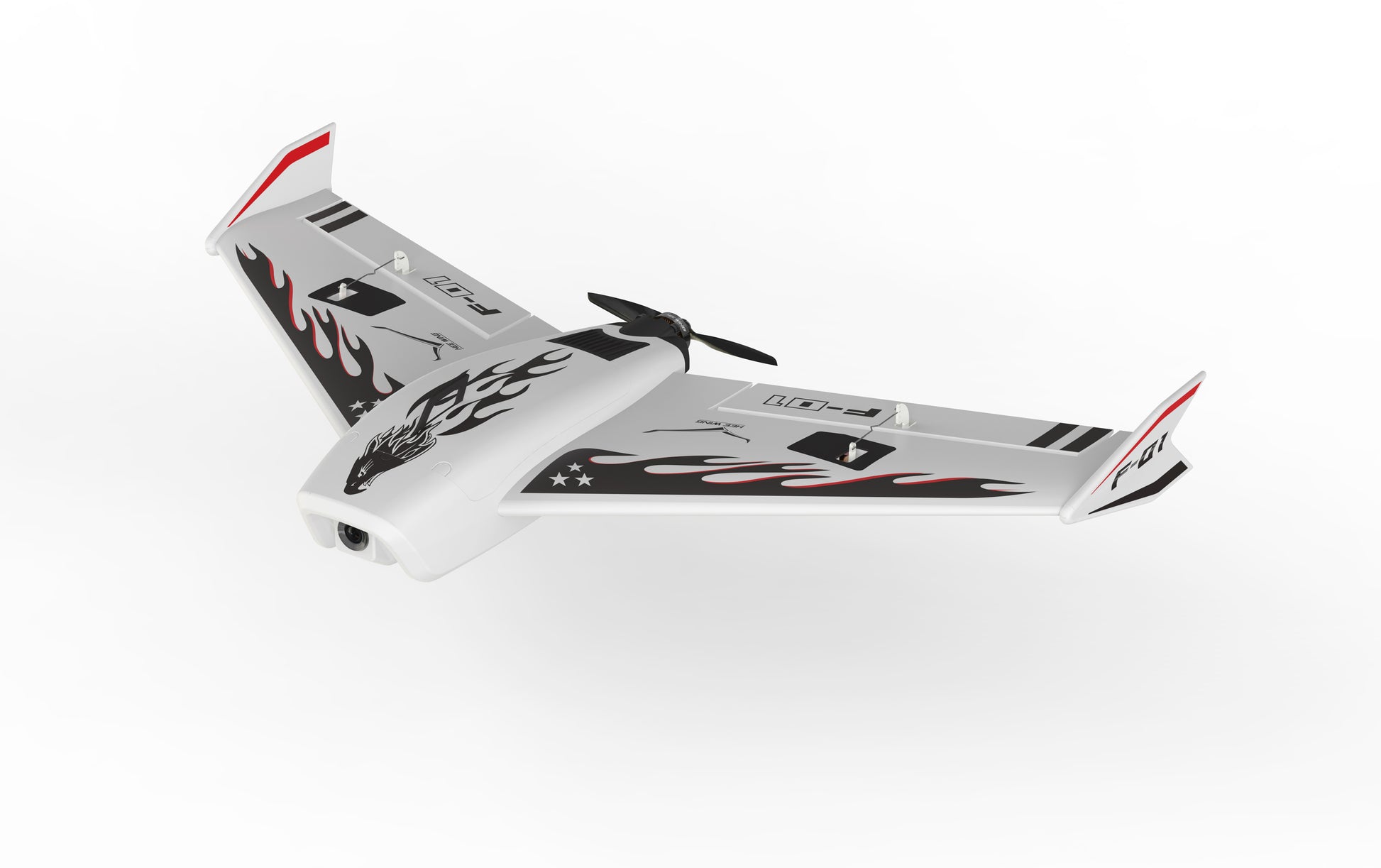

F01 is for the Speed Hunter! 😈 Proper aerodynamic design with wind tunnel testing. Suitable for analog and digital FPV speed flying!


Features
1. Detachable camera plug for FPV flying or 3rd person view flying
2. Built in Carbon Fiber Rod in the main wing
3. Large internal for electronics
4. Hatch secured with 4 powerful magnets
5. New wingtip design allows for vertical take off
6. Supports horizontal and vertical battery mounting
7. Lens protector provided to protect the FPV camera lens

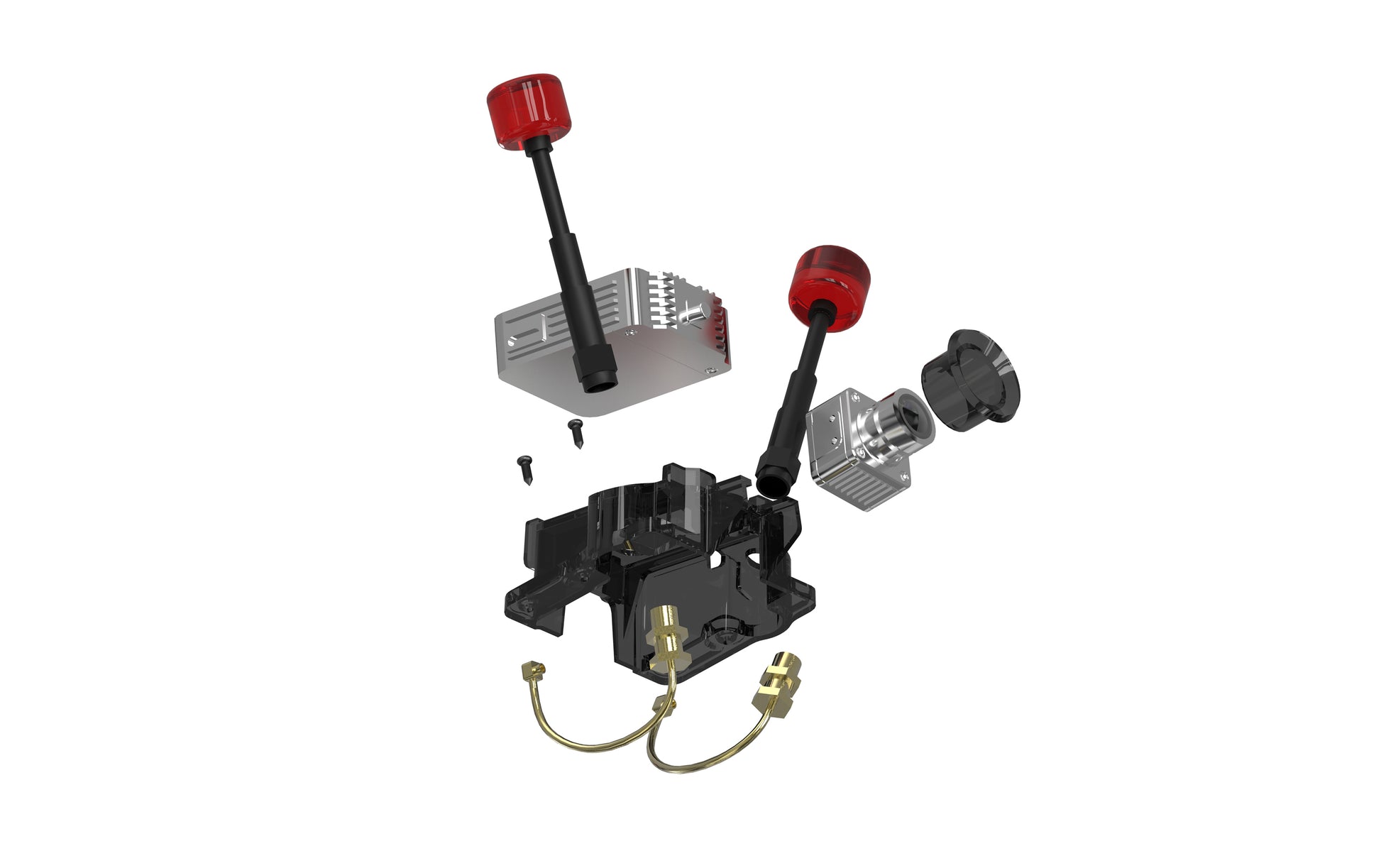

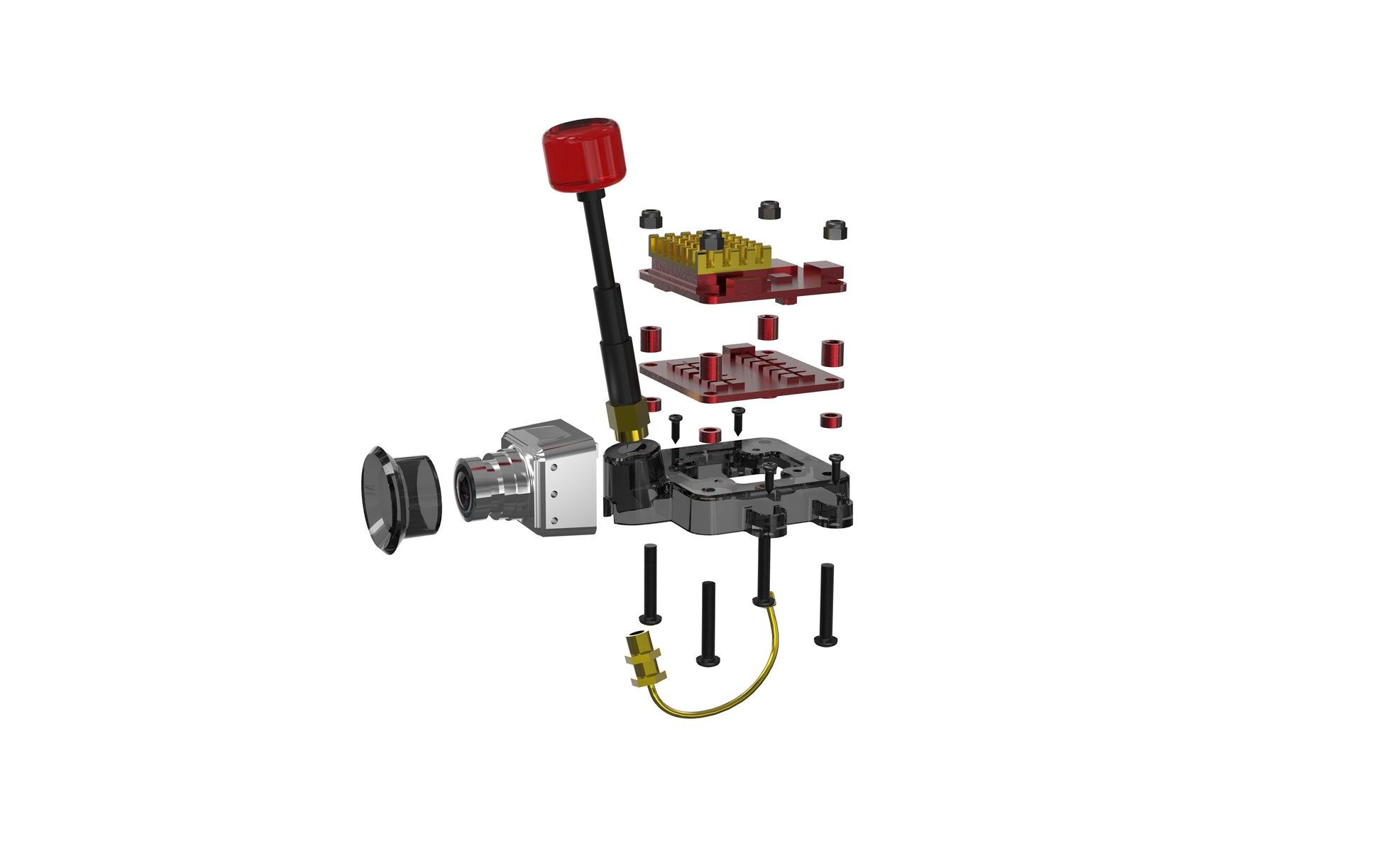

8. Mounting designed for Analog & DJI Digital Air Unit

Specification
Wingspan : 690mm
Material : EPP / ABS / CF
Dimension : 415mm (L), 88mm(H)
Battery Space : 175 x 75 x 55mm
ESC Space : 70 x 38 x 20mm
Camera Space : 20 x 21 x 30mm
Lens protector dimension : Outer diameter 17.5mm, Inner diameter 14~15mm, Height 12mm
Lens Material : ABS
Weight : 150g
AUW : 350 - 850g
Min speed : < 27km/h
* when flying high speed, install the camera plug to prevent air pressure from popping the hatch

What's included
1x F01 KIT

1x Accessories bag with VTX mounts, battery strap & hardwares

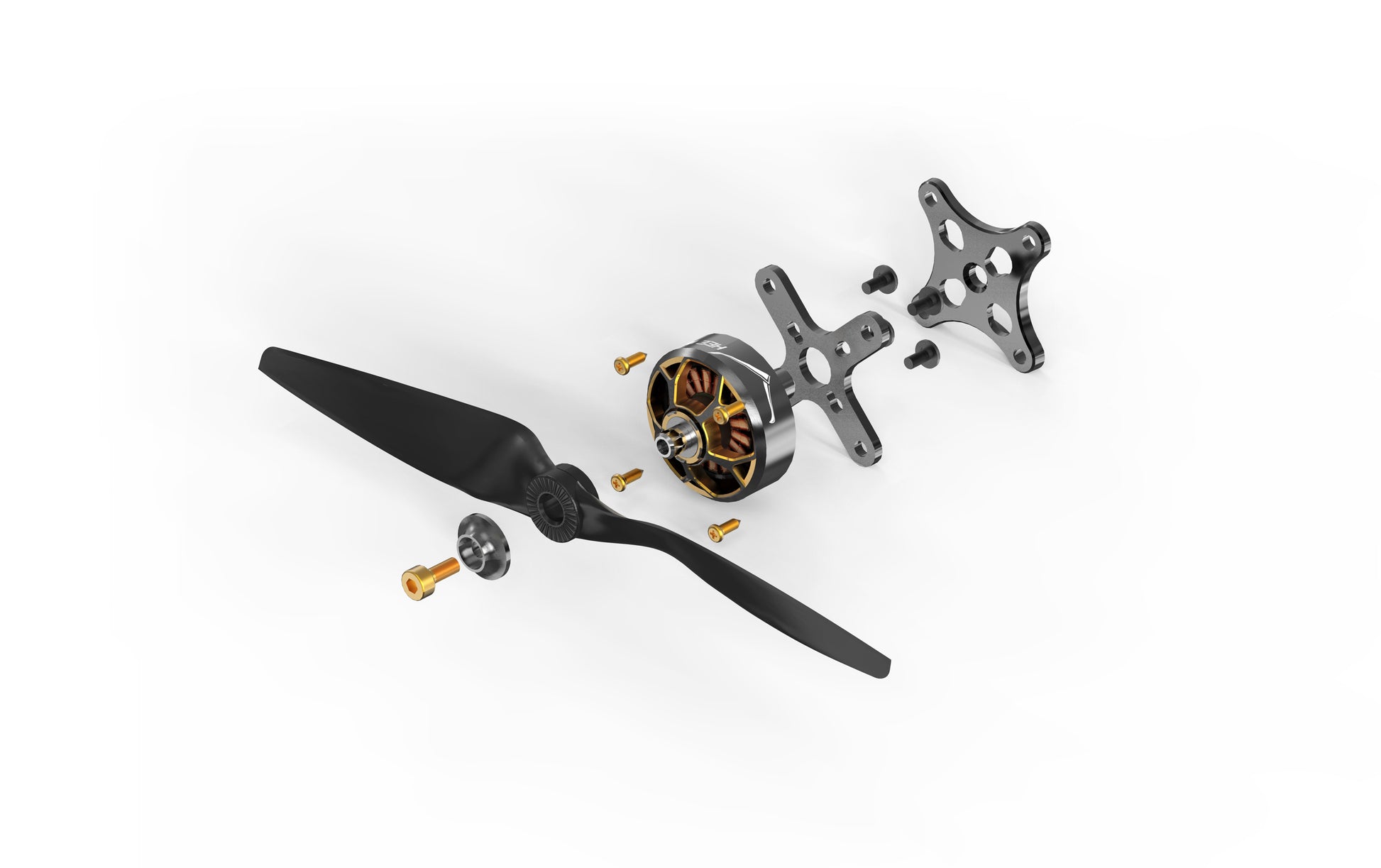

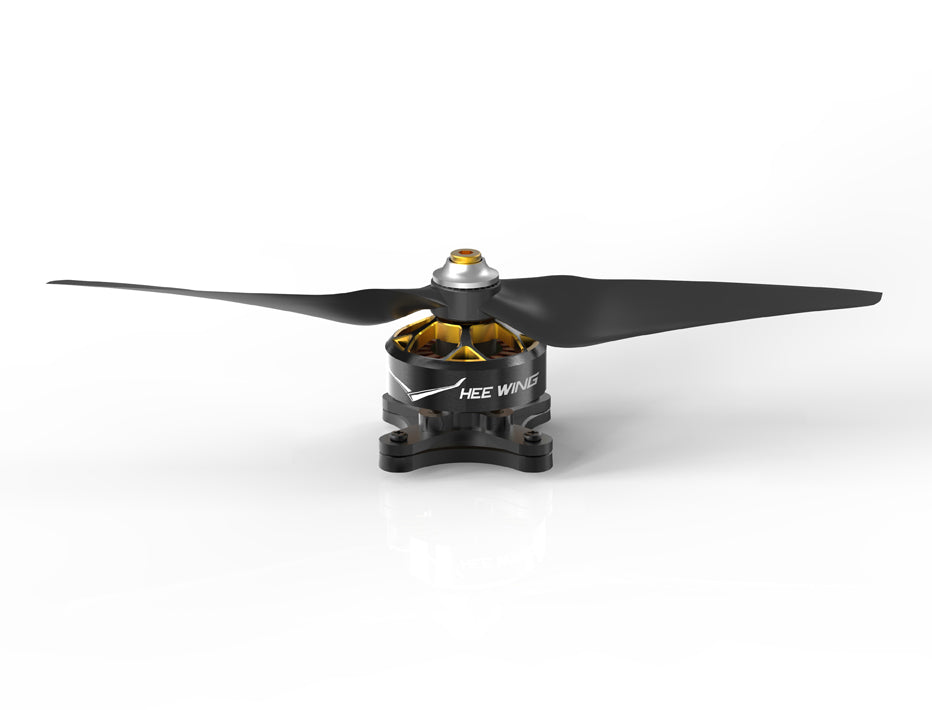

- 1x FX-2207 1960KV BL Motor, 1x FX-25A ESC, 5V 3A UBEC, 5x5E propeller, 2x HEE WING 041 12g digital metal gear servo & XT60 3.5 Battery Connector. ( Electronics without pre-installed)

Requires your own/not included
Battery : 2-4S 1500-3500mAh or 6S 1300-1550mAh

Charger : supports 2-4S or up to 6S charging
